Capacitive Fuel Level Sensor (BL-01)
BL-01 is Standard Capacitive Fuel Level Sensor with Analog Output. Made with high grade Aluminium Alloy Pipes and Glass Filled Nylon Body.
Capacitive Technology
0-5v Analog Output
10v-30v Input Voltage
12 WireAccuracy 1mm
Android Calibration App
Bluetooth Capacitive Fuel Level Sensor (BL-01-BLE)
BL-01-BLE is an extension of BL-01. It provide Digital data output over Low Power Bluetooth. Compatible with most BLE devices.
Capacitive Technology
Digital Output over BLE4.0
0-30v Input Voltage
12 WireAccuracy 1mm
Internal Battery backup
Android Calibration App

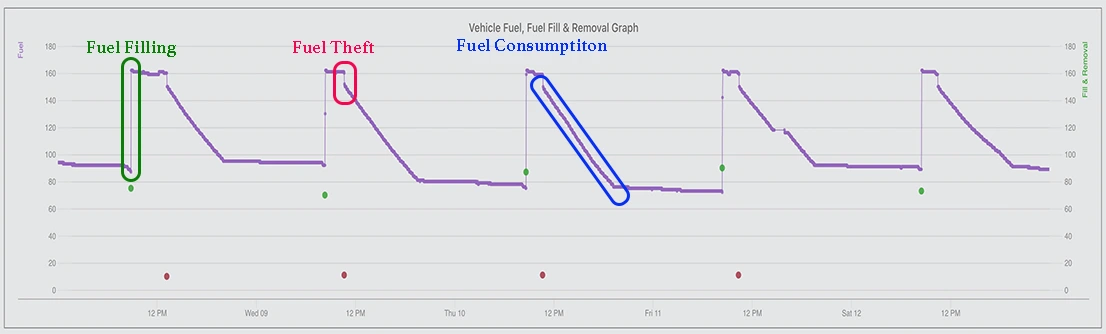

Sample data graph of fuel Sensor. Green dots show Filling events and Red dots show Removal events.

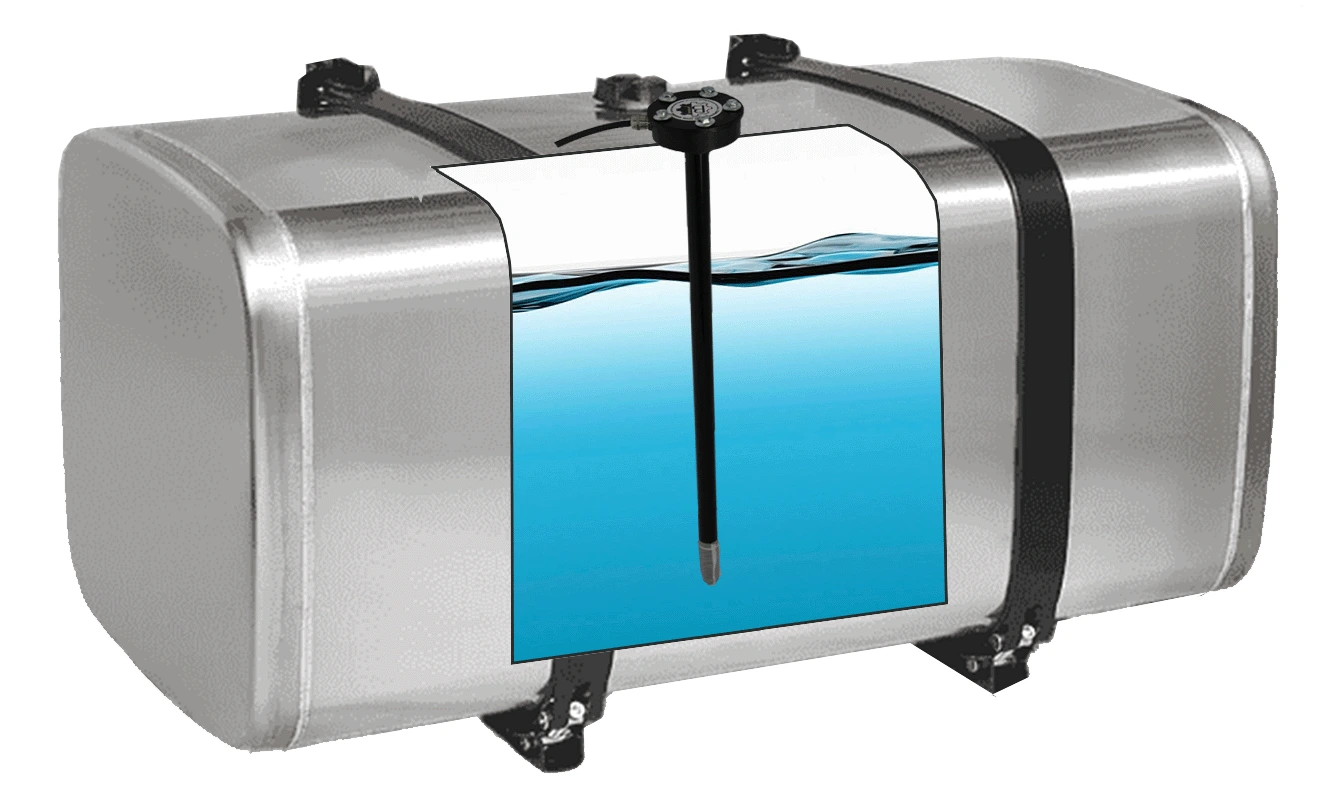

Sensor should be installed in the middle of the Tank for batter accuracy.
- Cut 32mm hole in the middle of the tank top.
- Measure depth of the tank.
- Trim sensor 5mm short to the tank depth
- Calibrate sensor Min and Max level.
- Install sensor with all 5 self drilling Screws supplied with the sensor.
- Connect power supply
- Connect with the GPS device
- Sensor packaging is custom designed to protect sensor from bending during transport. Specially designed Corogated hard Pipes with Steel caps are used to pack sensors.
- Standard packaging is 2 Sensors per Box.
- Accessories included: 3Meter Long Wire connected with Sensor. Gaskit, Sensor Cap, End cap, Nylon net pouch, Cable tie, Silicon sealant tube, Self drilling screws.
