GPS Tracker-old

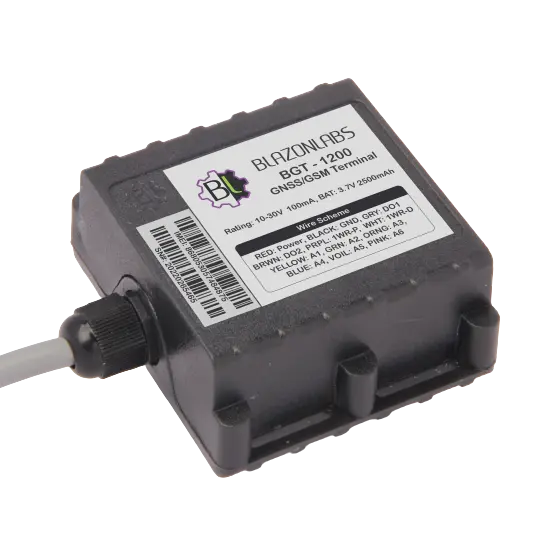

GPS Tracker (BGT - 1200)

BGT-1200 is high end GPS data logger. Designed specially for Heavy Vehicle tracking. Specially designed 6 Hybrid Analog/Digital ports. Big Battery Backup, and Large Flash to store a month of offline data.

2G GSM

GPS/GNSS

10 - 30 Volt DC

12 Wire

1500mAh Backup

IP65 BOX

Pricing: 3000/unit, MOQ:20

6 Analog/Digital

1Wire input

BLE 4.0

1GB Flash

Dual Sim

Box Open alert

Key Highlights..

  • BGT-1200 GPS tracker is based on 2G GSM/GPS/GNSS Module (MC60) from Quectel. MC60 gives high accuracy
    Geo Coordinates and better GSM connectivity
  • Tracker is driven by high end 32bit Microcontroller from MicroChip.
  • 1 Giga bit flash can store 524288 records of offline data, this will serve more than a Month of data even at high
    frequency of collection
  • 16 bit ADC from Microchip provide high accuracy analog input. Will provide better accuracy in reading Analog
    sensors.
  • Protection on input power supply protect device from voltage surge in vehicles.
  • IR transceiver to detect tracker cover Open/Close. Tracker can alert on such events to cloud and via SMS both.
  • Dual Sim facility can provide better GSM coverage.

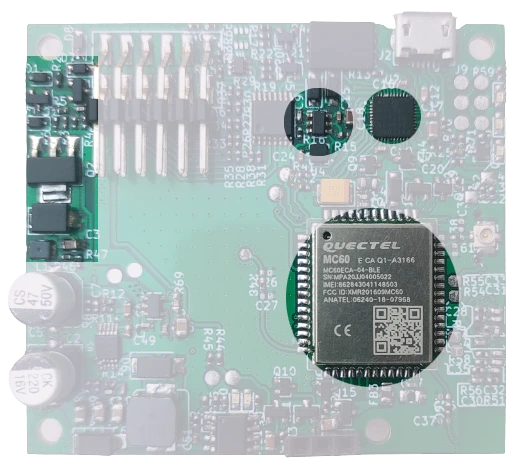

blazonlabs gps tracker board

Configurator App..

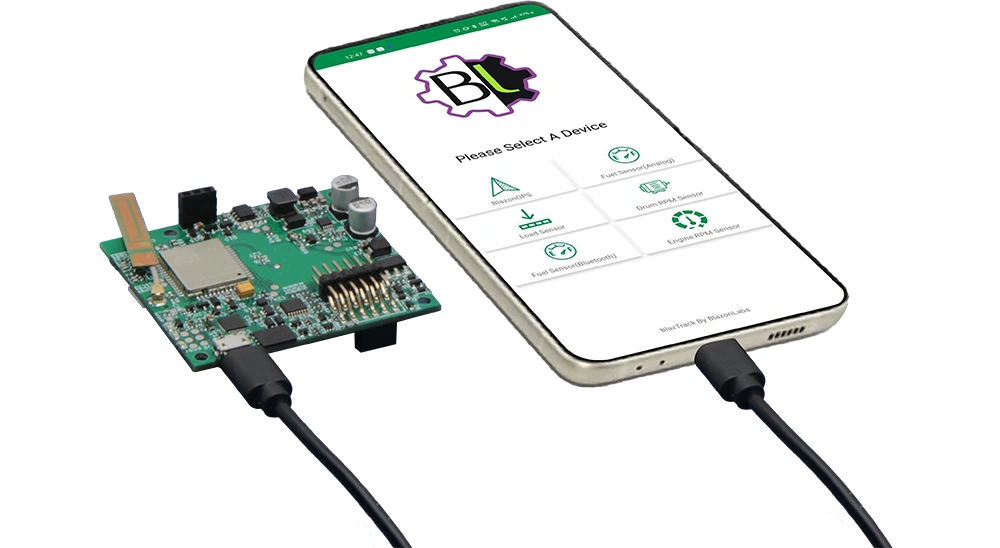

Easy device Configuration with Android app.
Download Blazonlabs Configurator(Single app for all Blazonlabs Devices and Sensors)
Connect device with USB cable and open the App.
Easy to understand config menu.
